m RIDE™
The Mack m RIDE™ spring suspension is designed for vocational customers demanding a durable, stable ride with greater articulation and traction on any jobsite. mRIDE®
EXTREME ARTICULATION AND CONSTANT GROUND LOAD
IMPROVED STABILITY AND GREATER GROUND CLEARANCE
LIGHTER THAN COMPETITIVE SUSPENSIONS
WEIGHT RATING: 40,000 TO 52,000 LBS
FULLY INTEGRATED WITH MACK POWERTRAIN
PARABOLIC SPRINGS
Strength meets comfort
Parabolic springs combine flexibility and shock absorption for a smooth ride. They’re thickest at the center to ensure greatest strength in the clamp load area and are tapered for ultimate ride comfort.
![](./media_1ed16f4ab5362f00946f2fa27b856fd65d9ff9c76.png?width=750&format=png&optimize=medium)

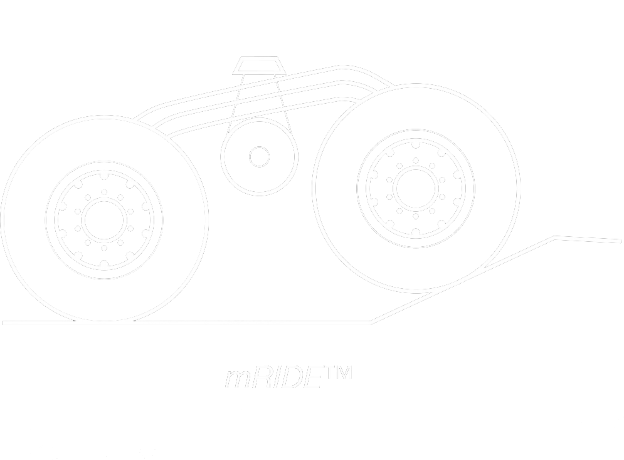

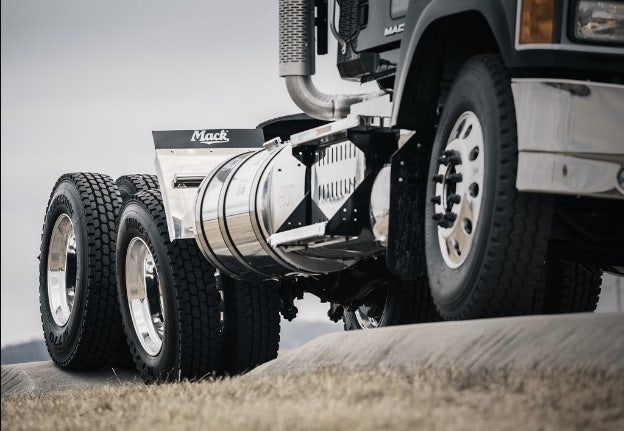

MAXIMIZED TRACTION
Up for anything
mRIDE provides extreme articulation and constant ground load by all wheels to maximize traction on any jobsite—no matter the terrain.
![](./media_1027b253b06108a3cb479f822493e37a847fc5862.jpeg?width=750&format=jpeg&optimize=medium)

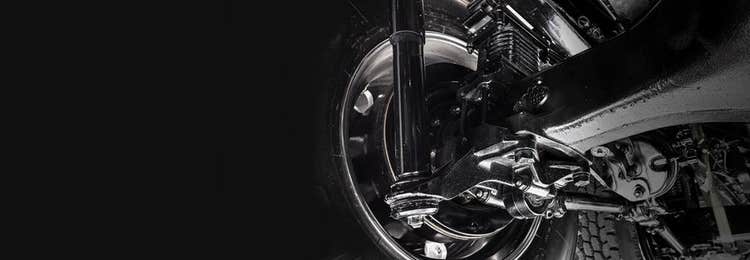

Brake adaptability
Engineered for the job
mRIDE is designed to accept air disc brakes and allow clearance of 8 5/8" wide foundation brakes to suit the needs of your application.
![](./media_1a7981447a223461846bd850386986a4dd0b85fbd.jpeg?width=750&format=jpeg&optimize=medium)

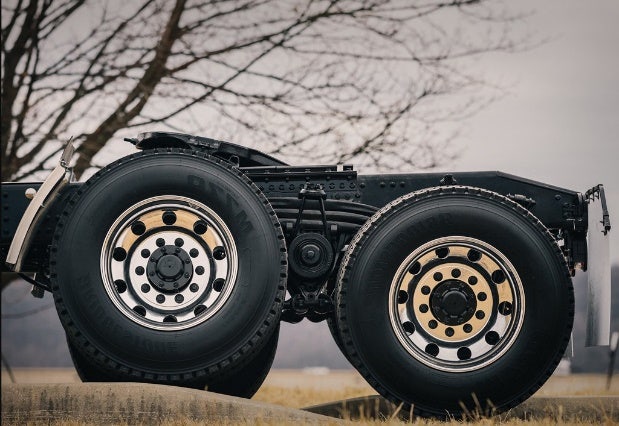

SHOCK ABSORBERS
Work hard, drive easy
The addition of shock absorbers dampens the reaction of the suspension to make for a smoother ride in both loaded and unloaded conditions.
![](./media_1b45aa6b4e478ded128ee0bcd1353215e5b048677.jpeg?width=750&format=jpeg&optimize=medium)
![](./media_189799a29df3611f55790ffaa12a31b0b5ab96be0.jpeg?width=750&format=jpeg&optimize=medium)
Application Flexibility
For productivity and protection, rear brake chambers are positioned forward of the rear-rear axle to provide clearance for pavers and other rear-of-truck equipment.
![](./media_13f2325dfcacde12ac8a80d50470259015f015730.jpeg?width=750&format=jpeg&optimize=medium)
Lower Cost of Ownership
Rubber spring towers and rubber center bushings are more durable and provide reliable long-life performance while parallel pinion angles extend driveline joint life.
![](./media_1832b97ebe4a339ddc1494ec3bc21907424e76d35.jpeg?width=750&format=jpeg&optimize=medium)

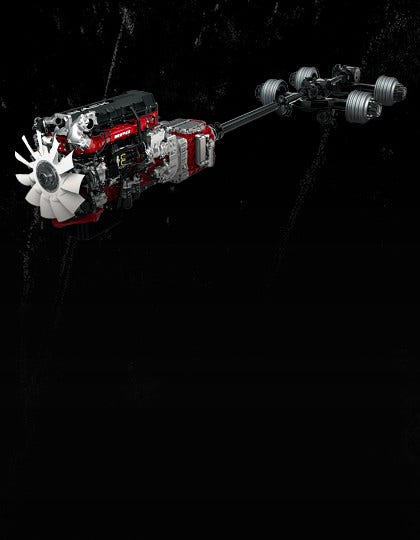

Complete Integration
Available with several ground load ratings and spring leaf packs, mRIDE™ is fully integrated with Mack’s MP® engines, transmissions and axles for increased efficiency.
Suspension & Performance Specs
mRIDE™ is offered in three different capacities so you can tailor performance to fit your applications.
WEIGHT RATINGS (LBS.) |
MODELS |
# OF SPRING LEAFS |
|
mRide™ 40 | 40,000 | Anthem, Pinnacle, Granite, TerraPro, LR | 2, 3 or 5 |
mRide™ 46 | 46,000 | Anthem, Pinnacle, Granite, TerraPro, LR | 3 |
mRide™ 52 | 52,000 | Granite, TerraPro, LR | 3 or 11 |
Specifications
Base Configurations
SUSPENSIONS
mRIDE 40, mRIDE 46, mRIDE 52
AVAILABLE AXLES
Mack S402R, S462R, S522R Cast Rear Axles
AXLE CONFIGURATIONS
Tandem Rear
AXLE SPACING
54”
TORQUE RODS
(2) V-Rods, Top Axle Mounted
SHOCKS
(4) Highly Recommended – Improved Ride and Durability
ABS
4S4M (6S6M available on Granite Models)
BUSHINGS
Rubber Trunnion Bearing, Rubber Suspension Rod Bushings
FRAME SIZES
7mm, 8mm, 9.5mm. 11mm (90mm & 105mm Flange)
FRAME REINFORCEMENTS
With or Without Inside Channel Frame Reinforcement
BRAKE CHAMBER CLEARANCE
Rear Brake Chamber Mounted Forward of Rear Axle
